CCGW CPGW CNGA Carbide Blanks for PCD and CBN tools,we have many types of the carbide blanks for the turning tool producers,customer buy the carbide blanks do grinding and welding by themselves.
We can also make the carbide blanks according to your request.
CCGW060302 CCGW060304 CCGW0603xx
CCGW09T302 CCGW09T304 CCGW09T308
CCGW11T302 CCGW11T304 CCGW11T308

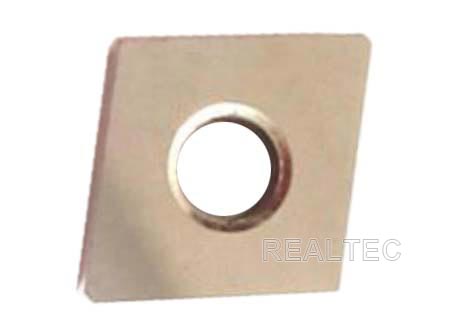

CNGA120402 CNGA120404 CNGA120406 CNGA120408 CNGA120412
We have almost full range of the carbide blanks for PCD and CBN tools production,if you got any request,please send us an E-mail for inquiry.
| Specification | IC | Thickness | Hole | Radius |
| CCGW03S102 | 3.5 | 1.4 | 1.9 | 0.2 |
| CCGWS3S102 | 4.26 | 1.8 | 2.3 | 0.2 |

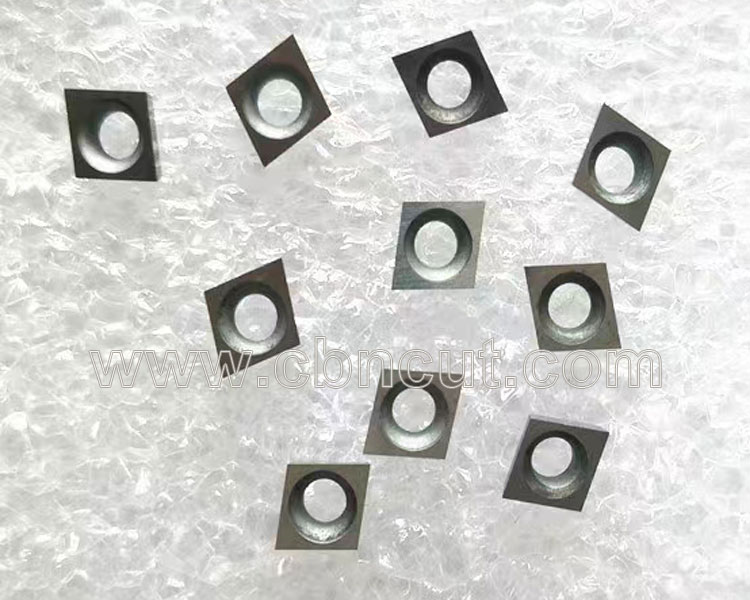

| CCGW040102 | 4.76 | 1.59 | 2.3 | 0.2 |
| CCGW040202 | 4.76 | 2.38 | 2.3 | 0.2 |
| CCGW050202 | 5.56 | 2.38 | 2.5 | 0.2 |
| CPGW040202 | 5.56 | 2.38 | 2.5 | 0.2 |
| CCGW060202 | 6.35 | 2.38 | 2.8 | 0.2 |
| CPGW060202 | 6.35 | 2.38 | 2.8 | 0.2 |
| CCGW080302 | 7.94 | 3.18 | 3.4 | 0.2 |
| CPGW080302 | 7.94 | 3.18 | 3.4 | 0.2 |
| CCGW090302 | 9.525 | 3.18 | 4.4 | 0.2 |
| CPGW090302 | 9.525 | 3.18 | 4.4 | 0.2 |
| CCGW09T302 | 9.525 | 3.97 | 4.4 | 0.2 |
| CCGW09T304 | 9.525 | 3.97 | 4.4 | 0.4 |
| CCGW120402 | 12.7 | 4.76 | 5.5 | 0.2 |
| CNGA090302 | 9.525 | 3.18 | 3.81 | 0.2 |
| CNGA120402 | 12.7 | 4.76 | 5.16 | 0.2 |
| CNGA160602 | 15.875 | 6.35 | 6.35 | 0.2 |
| CNGA190602 | 15.875 | 6.35 | 7.93 | 0.2 |
